SimpleT Parse JSON into Key-Value Pairs
SimpleT Parse JSON into Key-Value Pairs enables you to extract data from JSON strings and use it in your Salesforce Flow workflows. This tool converts complex JSON data into simple key-value pairs that Flow can easily work with, eliminating the need for custom code.
What This Tool Does
Primary Functions
- JSON Parsing: Converts JSON strings into key-value pairs
- Selective Extraction: Extract only the JSON fields you need
- Error Handling: Gracefully handles invalid or malformed JSON
When to Use This Tool
- API Responses: Process JSON responses from web service callouts
- Webhook Data: Parse incoming webhook payloads
- Configuration Files: Extract settings from JSON configuration data
- Form Submissions: Process JSON data from web forms
Understanding JSON and Key-Value Pairs
What is JSON?
JSON (JavaScript Object Notation) is a format for storing and exchanging data. It looks like this:
{
"name": "John Smith",
"age": 30,
"email": "john@company.com",
"active": true
}What are Key-Value Pairs?
This tool converts JSON into simple pairs where:
- Key: The field name (like "name", "age", "email")
- Value: The field value (like "John Smith", "30", "john@company.com")

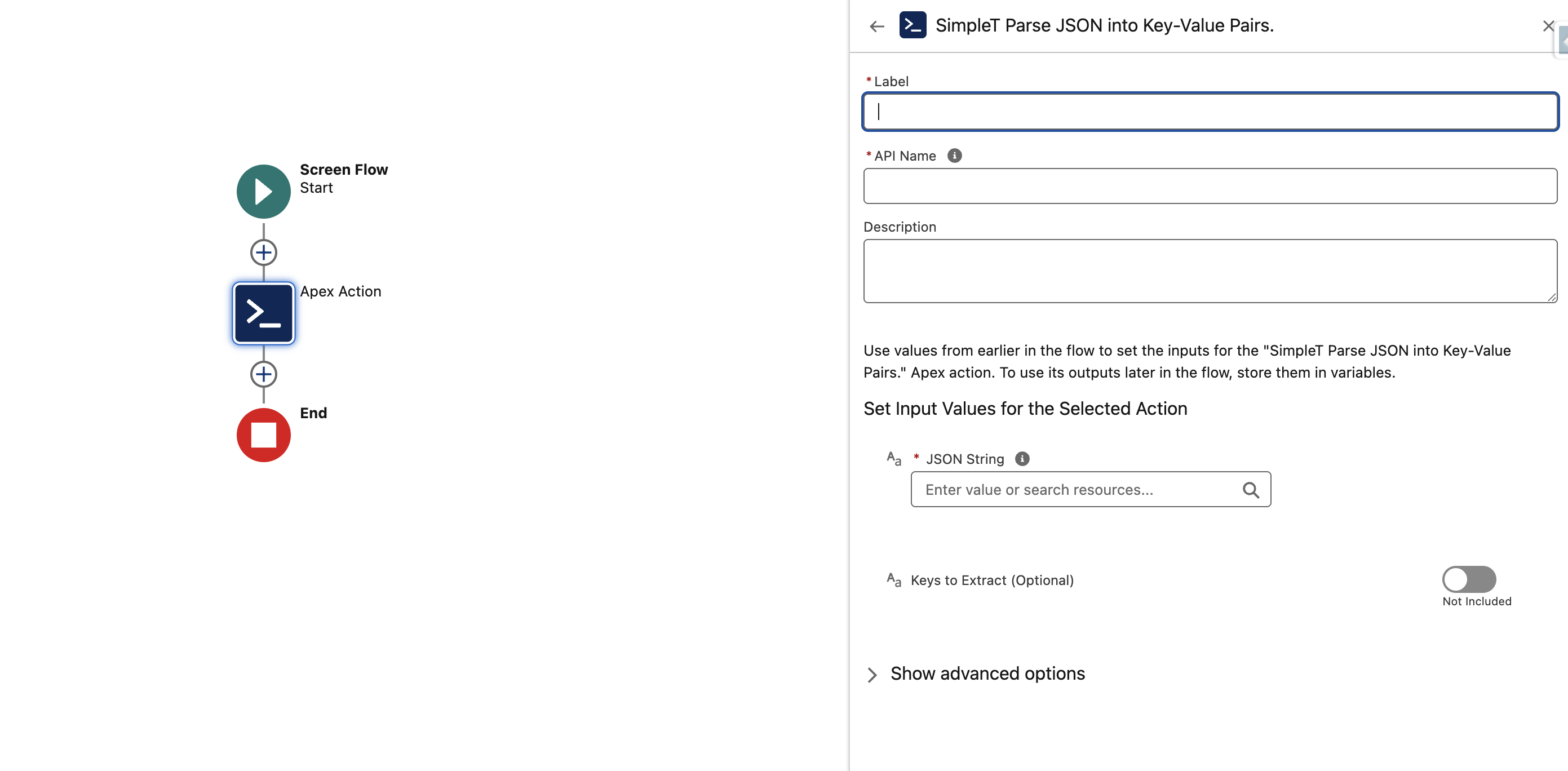

Input Parameters Explained
Required Fields
JSON String
What it is: The JSON text you want to parse
Format: Valid JSON string
Examples:
• From API callout: {!apiResponse}
• From record field: {!$Record.JSON_Data__c}
• From variable: {!jsonVariable}
• Literal JSON: {"name": "John", "status": "active"}
What it is: The JSON text you want to parse
Format: Valid JSON string
Examples:
• From API callout: {!apiResponse}
• From record field: {!$Record.JSON_Data__c}
• From variable: {!jsonVariable}
• Literal JSON: {"name": "John", "status": "active"}
Optional Fields
Keys to Extract
What it is: List of specific JSON keys you want to extract
Format: List of text values
When to use: When you only need specific fields from large JSON
Examples:
• Extract all: Leave empty
• Extract specific: ["name", "email", "status"]
• From variable: {!keysToExtractList}
Benefits of Selective Extraction:
• Faster processing for large JSON
• Cleaner results with only needed data
• Reduced complexity in Flow logic
What it is: List of specific JSON keys you want to extract
Format: List of text values
When to use: When you only need specific fields from large JSON
Examples:
• Extract all: Leave empty
• Extract specific: ["name", "email", "status"]
• From variable: {!keysToExtractList}
Benefits of Selective Extraction:
• Faster processing for large JSON
• Cleaner results with only needed data
• Reduced complexity in Flow logic
Understanding the Results
Result Structure
The parser returns a collection of key-value pairs:
parsedResults[0].invocableWrappers[0].key = "name" parsedResults[0].invocableWrappers[0].value = "John Smith" parsedResults[0].invocableWrappers[1].key = "age" parsedResults[0].invocableWrappers[1].value = "30"
Accessing Results in Flow
Method 1: Loop Through All Results
Element: Loop
Collection: {!parsedResults[0].invocableWrappers}
Current Item: {!currentKeyValue}
In Loop:
- Key: {!currentKeyValue.key}
- Value: {!currentKeyValue.value}
Element: Loop
Collection: {!parsedResults[0].invocableWrappers}
Current Item: {!currentKeyValue}
In Loop:
- Key: {!currentKeyValue.key}
- Value: {!currentKeyValue.value}
Method 2: Find Specific Values
Element: Loop
Collection: {!parsedResults[0].invocableWrappers}
Current Item: {!currentKeyValue}
Decision: Find Specific Key
- Condition: {!currentKeyValue.key} Equals "email"
- True Path: Store {!currentKeyValue.value} in emailVariable
Element: Loop
Collection: {!parsedResults[0].invocableWrappers}
Current Item: {!currentKeyValue}
Decision: Find Specific Key
- Condition: {!currentKeyValue.key} Equals "email"
- True Path: Store {!currentKeyValue.value} in emailVariable
Practical Examples
Example 1: Processing API Response
Scenario: Get customer information from external API
Flow Setup:
Step 1: HTTP Callout
• Method: GET
• URL: https://api.example.com/customers/123
• Store Response: {!apiResponse}
Step 2: Parse JSON Response
• Action: SimpleT Parse JSON into Key-Value Pairs
• JSON String: {!apiResponse}
• Keys to Extract: ["name", "email", "phone", "status"]
• Store Output: {!parsedCustomer}
Step 3: Extract Customer Data
Loop Through: {!parsedCustomer[0].invocableWrappers}
Current Item: {!currentData}
Decision: Map Fields
• If key = "name": Set customerName = value
• If key = "email": Set customerEmail = value
• If key = "phone": Set customerPhone = value
• If key = "status": Set customerStatus = value
Flow Setup:
Step 1: HTTP Callout
• Method: GET
• URL: https://api.example.com/customers/123
• Store Response: {!apiResponse}
Step 2: Parse JSON Response
• Action: SimpleT Parse JSON into Key-Value Pairs
• JSON String: {!apiResponse}
• Keys to Extract: ["name", "email", "phone", "status"]
• Store Output: {!parsedCustomer}
Step 3: Extract Customer Data
Loop Through: {!parsedCustomer[0].invocableWrappers}
Current Item: {!currentData}
Decision: Map Fields
• If key = "name": Set customerName = value
• If key = "email": Set customerEmail = value
• If key = "phone": Set customerPhone = value
• If key = "status": Set customerStatus = value
Example 2: Processing Webhook Data
Scenario: Handle order updates from e-commerce platform
Flow Setup:
Step 1: Receive Webhook
• Trigger: Platform Event
• JSON Payload: {!$Record.JSON_Payload__c}
Step 2: Parse Order Data
• Action: SimpleT Parse JSON into Key-Value Pairs
• JSON String: {!$Record.JSON_Payload__c}
• Keys to Extract: ["order_id", "status", "total", "customer_email"]
• Store Output: {!orderData}
Step 3: Process Order Information
Variables to Create: orderId, orderStatus, orderTotal, customerEmail
Assignment Based on Key:
• order_id → orderId
• status → orderStatus
• total → orderTotal
• customer_email → customerEmail
Flow Setup:
Step 1: Receive Webhook
• Trigger: Platform Event
• JSON Payload: {!$Record.JSON_Payload__c}
Step 2: Parse Order Data
• Action: SimpleT Parse JSON into Key-Value Pairs
• JSON String: {!$Record.JSON_Payload__c}
• Keys to Extract: ["order_id", "status", "total", "customer_email"]
• Store Output: {!orderData}
Step 3: Process Order Information
Variables to Create: orderId, orderStatus, orderTotal, customerEmail
Assignment Based on Key:
• order_id → orderId
• status → orderStatus
• total → orderTotal
• customer_email → customerEmail
Example 3: Dynamic Form Processing
Scenario: Process form submissions with varying fields
Flow Setup:
Step 1: Form Submission
• Trigger: Record Created (Form_Submission__c)
• JSON Data: {!$Record.Form_Data__c}
Step 2: Parse All Form Fields
• Action: SimpleT Parse JSON into Key-Value Pairs
• JSON String: {!$Record.Form_Data__c}
• Keys to Extract: (leave empty to get all fields)
• Store Output: {!formFields}
Step 3: Process Form Fields Dynamically
For Each Field:
• Create Form_Field__c record
• Field_Name__c = {!currentField.key}
• Field_Value__c = {!currentField.value}
• Form_Submission__c = {!$Record.Id}
Flow Setup:
Step 1: Form Submission
• Trigger: Record Created (Form_Submission__c)
• JSON Data: {!$Record.Form_Data__c}
Step 2: Parse All Form Fields
• Action: SimpleT Parse JSON into Key-Value Pairs
• JSON String: {!$Record.Form_Data__c}
• Keys to Extract: (leave empty to get all fields)
• Store Output: {!formFields}
Step 3: Process Form Fields Dynamically
For Each Field:
• Create Form_Field__c record
• Field_Name__c = {!currentField.key}
• Field_Value__c = {!currentField.value}
• Form_Submission__c = {!$Record.Id}
Example 4: Configuration Management
Scenario: Load settings from JSON configuration
Flow Setup:
Step 1: Load Configuration
• Get Records: Configuration__c where Active__c = true
• Configuration JSON: {!configRecord.JSON_Settings__c}
Step 2: Parse Configuration
• Action: SimpleT Parse JSON into Key-Value Pairs
• JSON String: {!configRecord.JSON_Settings__c}
• Keys to Extract: ["email_enabled", "max_retries", "timeout_minutes", "debug_mode"]
• Store Output: {!configSettings}
Step 3: Apply Settings
Decision: Apply Each Setting
• email_enabled → Update Email Service settings
• max_retries → Set retry logic parameters
• timeout_minutes → Configure timeout values
• debug_mode → Enable/disable debug logging
Flow Setup:
Step 1: Load Configuration
• Get Records: Configuration__c where Active__c = true
• Configuration JSON: {!configRecord.JSON_Settings__c}
Step 2: Parse Configuration
• Action: SimpleT Parse JSON into Key-Value Pairs
• JSON String: {!configRecord.JSON_Settings__c}
• Keys to Extract: ["email_enabled", "max_retries", "timeout_minutes", "debug_mode"]
• Store Output: {!configSettings}
Step 3: Apply Settings
Decision: Apply Each Setting
• email_enabled → Update Email Service settings
• max_retries → Set retry logic parameters
• timeout_minutes → Configure timeout values
• debug_mode → Enable/disable debug logging
Best Practices
Preparing JSON for Better Processing
• Use Clear Structure: Ensure your JSON has a logical, organized structure that's easy to understand
• Descriptive Key Names: Use meaningful field names that clearly indicate what the data represents
• Complete Information: Include all the data fields that your Flow will need to process
• Consistent Format: Keep JSON structure consistent across similar data sources for reliable processing
• Descriptive Key Names: Use meaningful field names that clearly indicate what the data represents
• Complete Information: Include all the data fields that your Flow will need to process
• Consistent Format: Keep JSON structure consistent across similar data sources for reliable processing
Troubleshooting Guide
Parser Not Working
1. Check JSON Format: Verify JSON is valid using online validators
2. Test with Simple JSON: Start with basic JSON to isolate issues
3. Review Variables: Ensure JSON variable contains expected data
4. Check Permissions: Verify user has access to Flow and action
No Results Returned
1. Empty JSON: Check if JSON string is empty or null
2. Wrong Keys: Verify key names match JSON structure exactly
3. Case Sensitivity: Ensure key names match case in JSON
4. JSON Structure: Confirm JSON is object format, not array
Incorrect Values
1. Data Type Conversion: All values converted to text - verify format
2. Nested Objects: Complex objects become text representations
3. Array Handling: Arrays converted to text format
4. Null Values: Check how null JSON values are handled
1. Check JSON Format: Verify JSON is valid using online validators
2. Test with Simple JSON: Start with basic JSON to isolate issues
3. Review Variables: Ensure JSON variable contains expected data
4. Check Permissions: Verify user has access to Flow and action
No Results Returned
1. Empty JSON: Check if JSON string is empty or null
2. Wrong Keys: Verify key names match JSON structure exactly
3. Case Sensitivity: Ensure key names match case in JSON
4. JSON Structure: Confirm JSON is object format, not array
Incorrect Values
1. Data Type Conversion: All values converted to text - verify format
2. Nested Objects: Complex objects become text representations
3. Array Handling: Arrays converted to text format
4. Null Values: Check how null JSON values are handled
